Stanley 119High hardness tool steel electrode for high speed tool steels
 |
|
Overview |
|
Specifications |
|
Email to a Friend |
|
High hardness tool steel electrode for high speed tool steels
- Deposits maintain a very sharp edge.
- UAlloying elements include tungsten, molybdenum and vanadium.
- Weld metal maintains many of its properties at elevated temperatures.
|
|
Overview |
|
Specifications |
|
Email to a Friend |
|
APPLICATIONS:

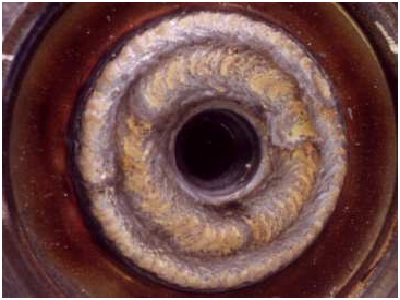

For repair and reclamation of high speed cutting and machining tools.
MICROSTRUCTURE:
In the as-welded condition, the microstructure consists of partially tempered martensite with carbides and some retained austenite.
FLUX COLOR: Grey
TYPICAL MECHANICAL PROPERTIES:
Undiluted Weld Metal
Hardness (as welded)
Hot Hardness
Heat Treated
|
Maximum Value Up to:
Rockwell C 58-62
Rockwell C 56 at 1100oF (600oC)
Rockwell C 63-65 |
RECOMMENDED CURRENT: DC Reverse (+), Straight (-) or AC
RECOMMENDED AMPERAGE SETTINGS:
| Diameter (mm) |
3/32 (2.5) |
1/8(3.25) |
5/32 (4.0) |
| Minimum Amperage |
45 |
80 |
110 |
| Maximum Amperage |
90 |
120 |
150 |
WELDING POSITIONS: Flat, Horizontal, Vertical up
DEPOSITION RATES:
Diameter
(mm) |
Length
(mm) |
Weldmetal/
Electrode |
Electrodes per lb
(kg) of Weldmetal |
Arc Time of
Deposition
min/lb (kg) |
Amperage
Setting |
Recovery
Rate |
| 3/32(2.5) |
14" (350) |
.45oz (12g) |
36 (78) |
30 (66) |
70 |
120% |
| 1/8 (3.25) |
14" (350) |
.93oz (25g) |
17 (38) |
20 (44) |
100 |
120% |
| 5/32 (4.0) |
14" (350) |
1.2oz (34g) |
13 (29) |
17 (37) |
130 |
120% |
WELDING TECHNIQUES:
When welding on tool steel, preheat the part to 1100oF (600oC) and maintain this temperature during welding. Allow parts to cool slowly.
ELECTRODE PACKAGING & DIMENSIONS:
| Diameter(mm) |
3/32(2.5) |
1/8 (3.25) |
5/32 (4.0) |
| Length (mm) |
14"(350) |
14"(350) |
14"(350) |
| Electrodes / lb |
19 |
12 |
9 |
| Electrodes / kg |
42 |
26 |
20 |
|
|
