Stanley 323Very high strength nickel manganese aluminum bronze electrode with excellent wear resistance
 |
|
Overview |
|
Specifications |
|
Email to a Friend |
|
Very high strength nickel manganese aluminum bronze electrode with excellent wear resistance
- Universal electrode safely repairs all grades of aluminum bronzes.
- Resists corrosion, cavitation, erosion, and metal to metal wear.
|
|
Overview |
|
Specifications |
|
Email to a Friend |
|
APPLICATIONS:

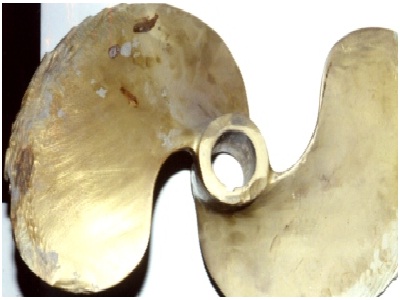

Joining and surfacing parts subject to service in marine environments and seawater.
MICROSTRUCTURE:
Complex alpha matrix with kappa compound phases and some retained beta phase.
FLUX COLOR: Grey
TYPICAL MECHANICAL PROPERTIES:
Undiluted Weld Metal
Tensile strength
Yield strength
Elongation
H a r d n e s s
|
Maximum Value Up to:
96,000 PSI (650 N/mm2)
65,000 PSI (450 N/mm2)
2 0%
Brinell 155, Rockwell B87 |
RECOMMENDED CURRENT: DC Reverse (+)
TEMPERATURE RANGES:
| Diameter (mm) |
1/8(3.25) |
5/32 (4.0) |
3/16 (5.0) |
| Minimum Amperage |
90 |
105 |
135 |
| Maximum Amperage |
130 |
155 |
210 |
WELDING POSITIONS: Flat
DEPOSITION RATES:
Diameter
(mm) |
Length
(mm) |
Weldmetal/
Electrode |
Electrodes per lb
(kg) of Weldmetal |
Arc Time of
Deposition
min/lb (kg) |
Amperage
Setting |
| 1/8 (3.25) |
14" (350) |
.8oz (22g) |
20 (45) |
25 (54) |
110 |
| 5/32 (4.0) |
14" (350) |
1.1oz (32g) |
14 (31) |
16 (36) |
135 |
| 3/16 (5.0) |
14" (350) |
1.6oz (45g) |
10 (22) |
13 (28) |
180 |
WELDING TECHNIQUES:
Preheat is not required. Maintain a short arc gap. Clean slag thoroughly between passes.
ELECTRODE PACKAGING & DIMENSIONS:
| Diameter(mm) |
1/8 (3.25) |
5/32 (4.0) |
3/16 (5.0) |
| Length (mm) |
14" (350) |
14" (350) |
14" (350) |
| Rods / lb |
13 |
9 |
6 |
| Rods/ kg |
29 |
20 |
13 |
|
|
